BACHES Echelle-Spectrograph
$8,000.00

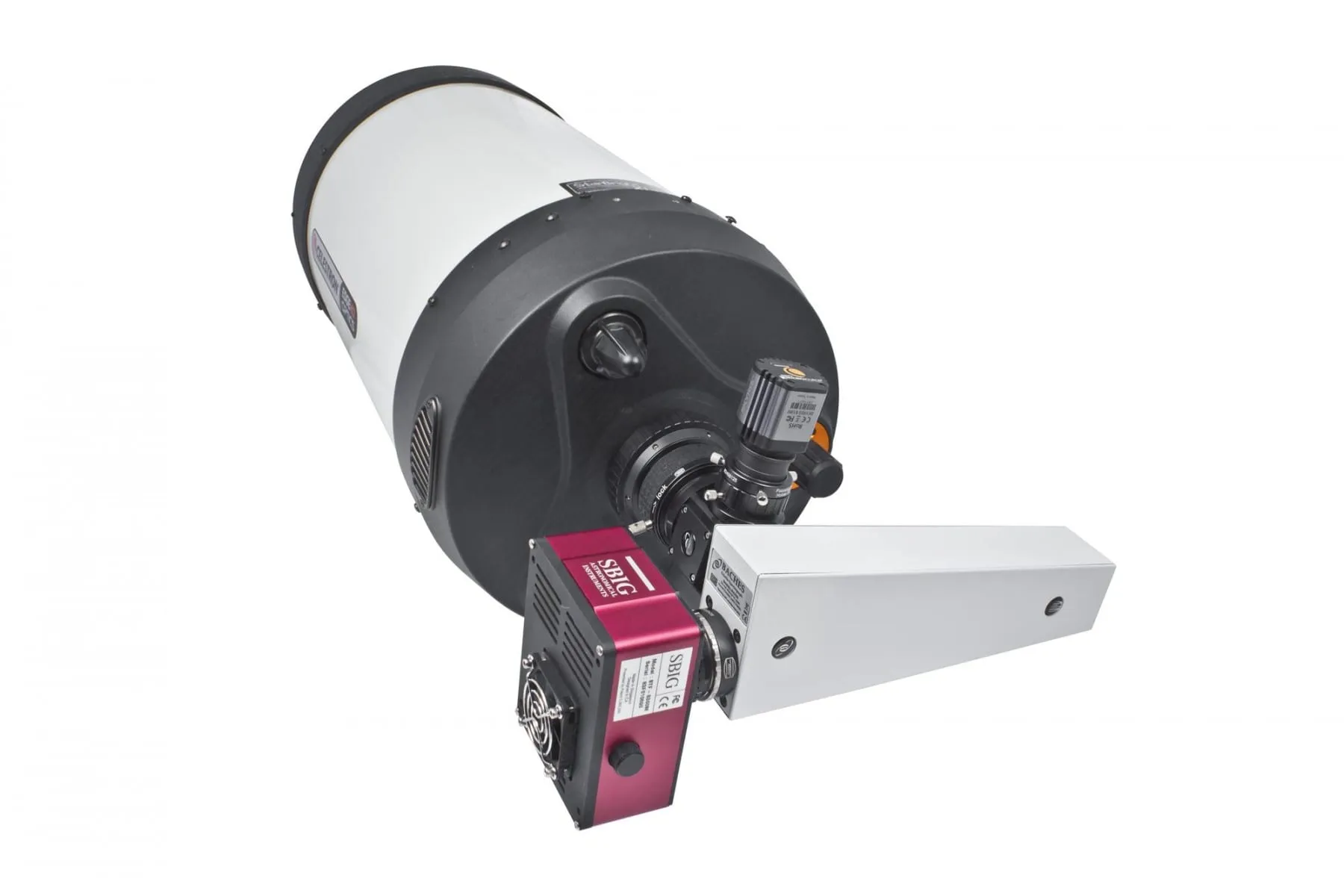

The BACHES Echelle-Spectrograph, shown here with the recommended, optinally available Remote Calibration Unit RCU (on the left, with an SBIG ST 1603 ME camera attached), is a professional spectrograph for precise, high-resolution analysis of spectra. BACHES is an acronym for Basic Echelle Spektrograph.
About the BACHES Echelle-Spectrograph
- Baader BACHES Echelle-Spektrograf: A New Level of SCIENTIFIC SPECTROSCOPY with small Telescopes
- average spectral resolution R = 18,000
- changeable 25 and 50μm slits. Slit length 125μm
- light and compact, only 1350g (without CCD camera)
Specifications
BACHES Echelle-Spectrograph
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2458600 |
| EAN CODE | 4047825024213 |
| USAGE | Professional use in astronomical / scientific research and university student education (astronomical internships). Suitable for advanced amateur astronomers, who already have experience in star spectroscopy |
| SPECTRAL RESOLUTION | average spectral resolution R = 18,000 |
| OPTIMIZED SPECTRAL RANGE | 392-800nm continuously (depending on sensor size) |
| BREAK-EVEN VALUE | 10 mag. vis (50cm-telescope, S/N=20, 30min. exposure (see http://arxiv.org/abs/1406.2492) |
| MECHANICAL DESIGN | Echelle-Spectrograph with high mechanical stability, FE designed, torsion deformation below 9μm at 180° rotation |
| FIELD SIZE | optimized for sensor sizes ca. 15x10mm, 9μm Pixel (i.e. KAF-1603), usable with 7x4mm sensor sizes (i.e. ST-402) and DSLR‘s |
| ÖFFNUNGSVERHÄLTNIS DES KOLLIMATORS | f/10 |
| OPTIMIZED FOR FOCAL RATIO | optimized for 8" to 24" f/10 telescopes (full resolution from f/8 to f/12) |
| ADAPTABLE TO | CCD- and DSLR-cameras |
| SLIT SIZE | changeable 25 and 50μm slits. Slit length 125μm |
| ILLUMINATION | manual red LED for Slit-Focusing |
| SPECIAL FEATURES | Including instruction for Spectra Callibration. solenoid switches between the light from the telescope and the ThAr calibration and flat field lamp of the RCU |
| GUIDING PORT | with 1¼“-connection for eyepieces, video- or guiding cameras |

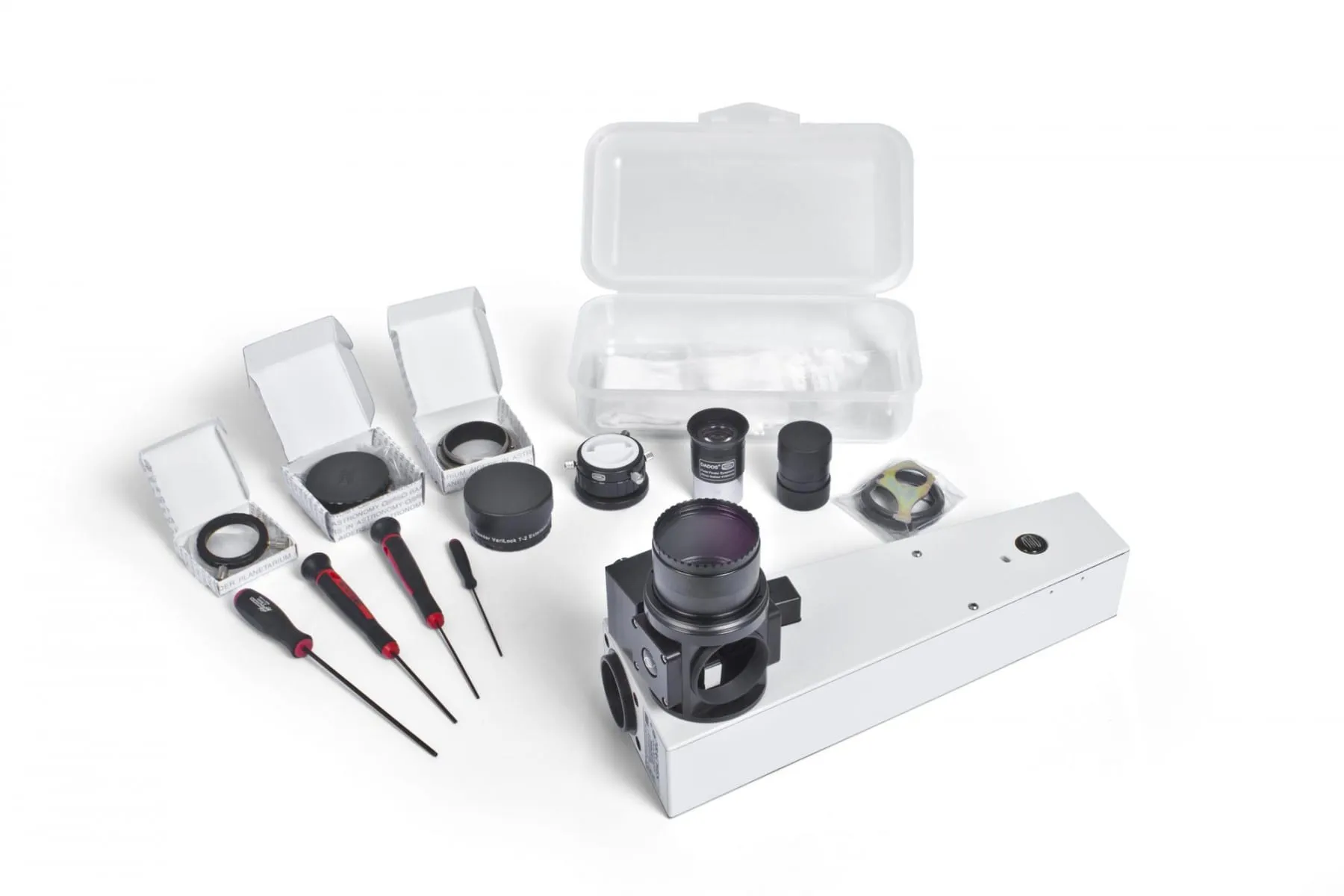

| INCLUDED ACCESSORIES | Standard: with ThAr lamp mounted on BACHES body (with separate power supply). Professional with Remote Calibration Unit (RCU) with built-in ThAr lamp and halogen flat field lamp remotely controlled via web interface |
| OPTIONAL ACCESSORIES | 1.5x-barlow lense: to optimize ca. f/6.8-telescopes to f/10. Remote Calibration Unit (RCU) for professional calibration of Echelle Spectra |
