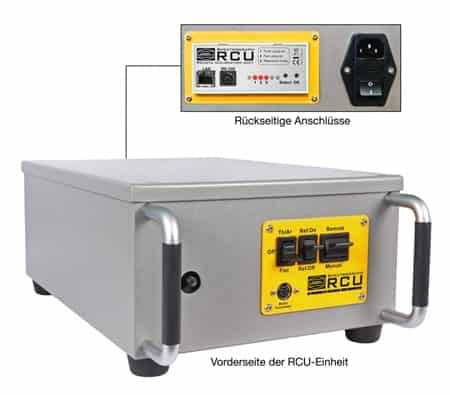

BACHES RCU (Remote Control Unit) Calibration-Set

Baader BACHES RCU (Remote Calibration Unit) Calibration-Set
Specially produced for the BACHES Echelle Spectrograph

The Remote Calibration Unit (RCU) is an important optional accessory for the BACHES Echelle Spectrograph. With the RCU you can retrieve accurate and professional calibration of BACHES Echelle-Spectra. The RCU includes a ThAr Calibration Lamp and a Halogen Flatfield lamp, either of them can be connected to the BACHES with a fiberglas cable.

Scope of supply of the Calibration-Unit RCU

Baches RCU (Remote Calibration Unit)-Set, consists of: RCU with built-in Thorium-Argon-Lamp, Flatfield-Lamp, Webinterface and 230V AC-input, fiberglass coupling, fiber optic line (3 Meter), power cable (3 Meter) and ABS-transport case. The built-in ThAr-Calibration lamp and the Halogen Flatfield lamp can be controlled by webinterface.

Please note: The BACHES Spectrograph is NOT included in RCU scope of supply.

Technical data of the Remote Calibration Unit (RCU)

• switchable between fully manually controlled and fully remote controlled
• integrated ThAr lamp and white light lamp for spectral calibration and flatfielding
• integrated power supply for all components
• high voltage 15mA current control for maximum ThAr lamp efficiency
• pre-aligned fiber coupling to BACHES for the ThAr lamp and flatfield lamps, with a removable 50μm fiber, 2.5m in length
• 6 pin, 2.5m power cable for the BACHES solenoid to switch between the telescope light and the flatfield lamp
• Remote control via 10/100 Mbit/s 10base Ethernet (RJ-45), TCP/IP protocol
• integrated web server for fast and easy internet access with any web browser
• additional local PC remote control via RS232 serial line
• size 320mm (L) x 215mm (W) x 125mm (H). L=345mm with handles
• weight net 5.6kg. Power supply 230V AC, 25W
• shielded case with four rubber pads for vibration damping
• optional mounting accessories, for either a 19“ rack or direct telescope attachment, respectively
