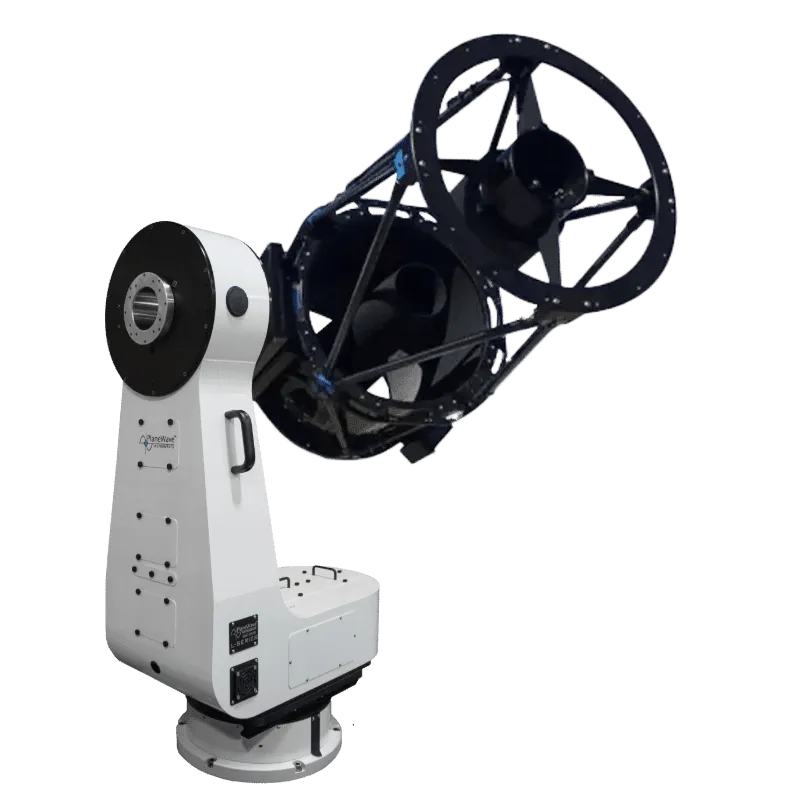

CDK450 Telescope System

Key Features of the CDK450 Observatory System

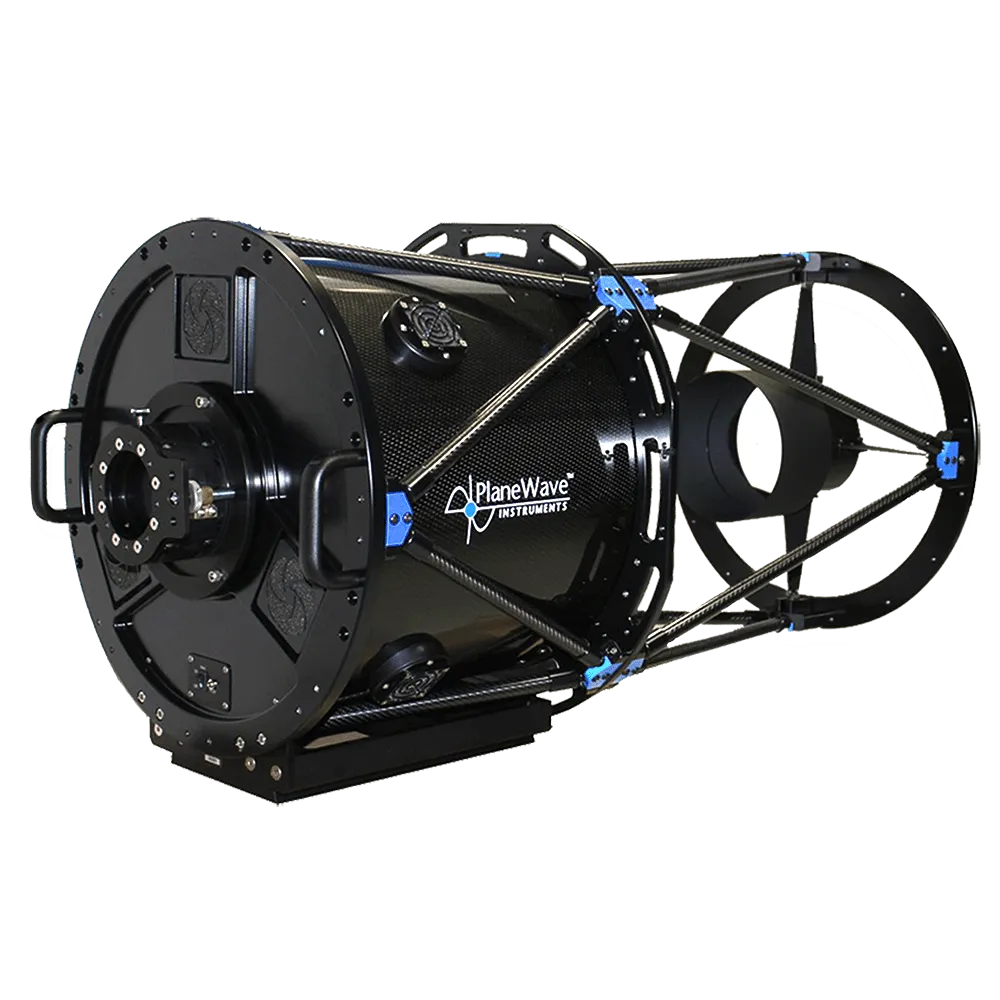

CDK17 Optical Tube Assembly

• Advanced Optical Design: Employs a Corrected Dall-Kirkham optical design, achieving a field free of off-axis coma and astigmatism and a perfectly flat field across a 52 mm image circle, resulting in critically sharp images over the entire viewing area.
• High-Quality Construction: Constructed with robust carbon fiber, reducing thermal expansion and enabling quick thermal equilibration, which helps maintain precise optical alignment under fluctuating temperatures.
• Superior Mirrors and Coatings: Equipped with high-stability fused silica mirrors known for minimal thermal expansion, paired with high-performance coatings that maximize light throughput while minimizing stray light for optimal imaging quality.
• Thermal Management: Incorporates an advanced cooling system with strategically placed fans that ensure rapid thermal stabilization, essential for maintaining consistent, high-quality imaging and minimizing focus shifts caused by temperature changes.

CDK17 f/6.8 OTA

• Aperture and Focal Length: Features a 17-inch aperture, a shorter 3454 mm focal length at a faster f/6.8 focal ratio, and a shorter back focus of 262 mm.

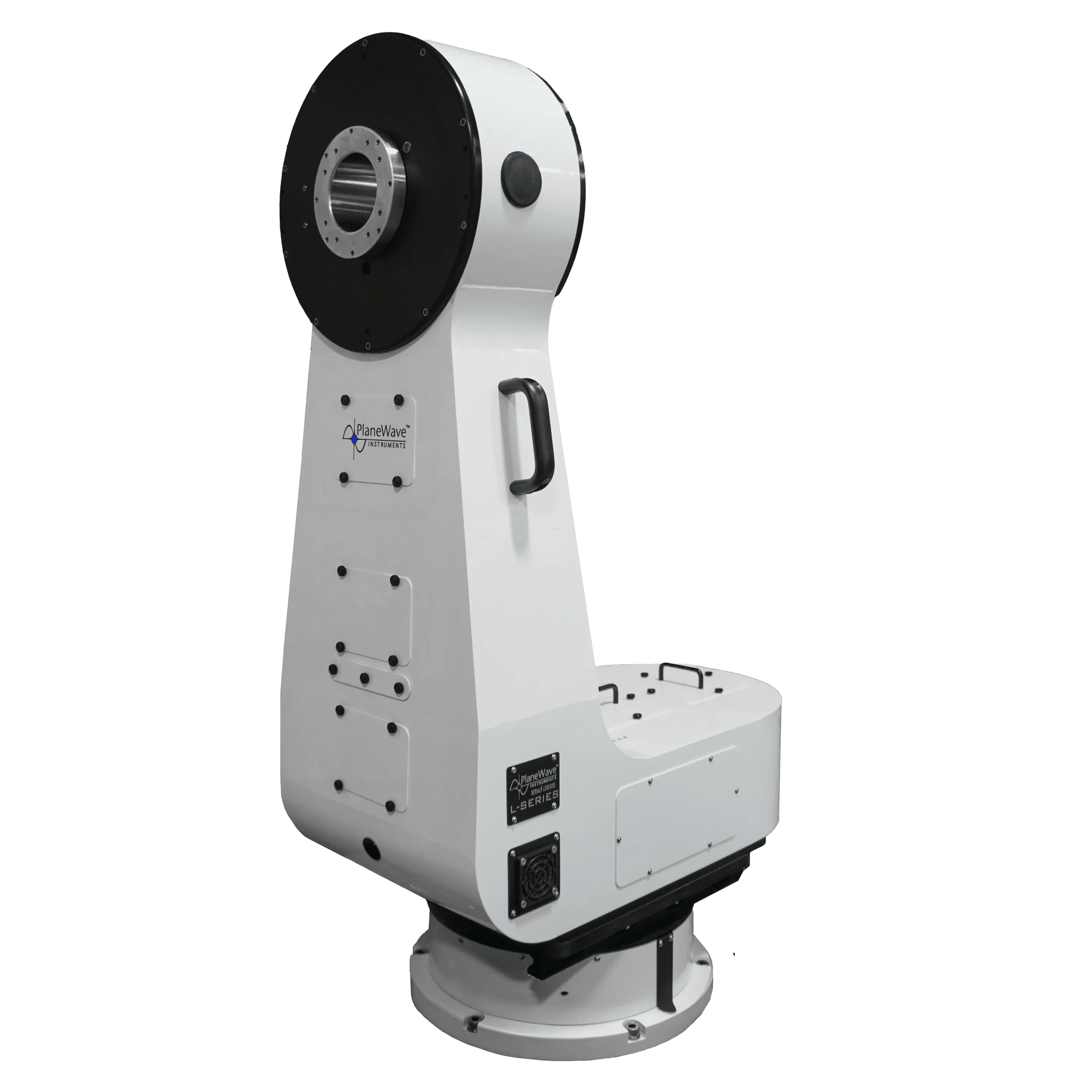

L-550 Direct Drive Mount

• Direct Drive Motors: Features state-of-the-art direct-drive motors on each axis, providing smooth, fast, and virtually silent movement of the telescope with zero backlash and zero periodic error, perfect for precise tracking and rapid repositioning of celestial objects.
• High-Resolution Encoders: Outfitted with high-resolution optical encoders on both axes, offering precise positioning and movement, which is crucial for elite astrophotography and detailed astronomical studies.
• Azimuth Dovetail Balance System: Includes a finely adjustable balance system that enhances the stability and performance of the setup in both alt-azimuth and equatorial configurations, essential for prolonged accurate tracking and reducing stress on the mount during extended observations.
• Rapid Target Acquisition: Capable of impressive slew speeds up to 50 degrees per second, allowing for quick and efficient targeting of celestial bodies and satellites, vital for dynamic observations and responsive astrophotography.

Application-Specific Advantages

Astrophotography

The CDK450 is a formidable system for astrophotographers, offering unmatched tracking accuracy and image stability, which facilitate capturing spectacular celestial images with detailed resolution and vibrant colors. The L-550 carries a greater payload capacity – perfect for holding a second telescope on the outside hub.

Astronomy Research

Researchers will find the CDK450 invaluable for its consistent performance and precise data collection capabilities. It serves as a robust platform for sophisticated photometry, spectroscopy, and minor planet tracking, offering a solid foundation for scientific discovery and exploration.

Visual Observations

For enthusiasts of visual astronomy, the CDK450 provides vibrant and detailed views of the universe. Its significant aperture and high-quality optical components ensure exceptional viewing of planetary, lunar, and deep-sky objects, enriching every observational experience.

Space Situational Awareness (SSA) and Space Domain Awareness (SDA)

With its swift and precise repositioning capabilities, the L-550 mount in the CDK450 system is capable of tracking satellites and space debris. However, it's important to note that while the L-series mounts are highly effective for astrophotography and research applications, they might not meet the optimal performance standards required for dedicated SSA/SDA operations. For those needs, we recommend exploring our T-600 Direct-Drive Gimbal, specifically engineered to exceed the demanding requirements for SSA/SDA applications, ensuring superior tracking and responsiveness in monitoring and cataloging space objects.
