600180 Irf90.jpg

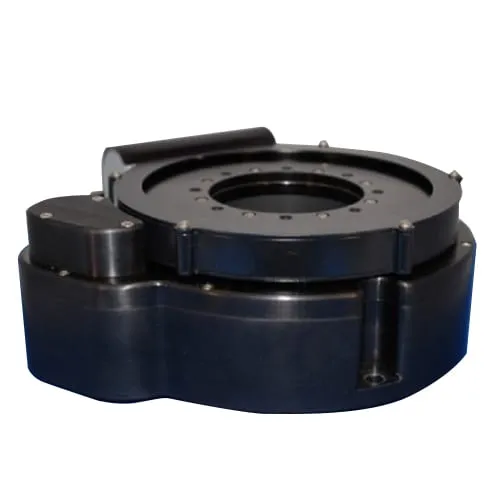

IRF90 – Integrated Rotating Focuser

SKU: 600180 Categories: , Tags: , , , , , , , , , , ,

$5,200.00

  • The IRF90 is a large capacity Integrated Focuser and Rotator for use with Alt/Az, or equatorially mounted systems.
  • Occupies 3.5″ of backfocus with the focuser fully racked in, and 4.7″ when fully racked out.
  • The Focuser is capable of lifting 40 lbs (18 kg) with a range of 30mm (30000 microns/1.2″).
  • The Rotator has a 90mm aperture with a range of 365 degrees with hardstops to eliminate any chance of cord wrap.
  • IRF90 is controlled via PWI3 software for autofocusing and optional field de-rotation (if using an Alt/Az mounted system).
