| Hedrick Focuser |
- The Hedrick focuser designed by PlaneWave is a heavy duty no-slip focuser capable of handling an imaging payload of up to 20lbs.
- Occupies 3″ of backfocus with the focuser fully racked in, and 4.2″ when fully racked out.
- Focuser travel range of 30mm (30000 microns/1.2″)
- The focus tube runs on 5 bearings and is driven by a leadscrew so there is no chance of slipping.
- Focus may be automated through a computer using PlaneWave’s EFA Kit and PWI3 software.
- The focuser comes with pre-installed motor that can be controlled with the EFA hand controller or PWI3 software.
| $1,150.00 | |
| Counterweight Accessory for CDK12.5 | Counterweight kit for CDK12.5 attaches to the dovetail bar for critical balance in Declination.
| $290.00 | |
| Mounting Bracket for Finderscopes |
- This is an L-shaped bracket that attaches in four different places on the back of any of the CDK models.
- This is used to mount a finderscope or some other accessory.
- Two 1/4-20 screws provided attach the bracket to the backplate of the telescope and two 10-32 threaded holes spaced at 1.450″ can be used to mount accessories too.
| $50.00 | |

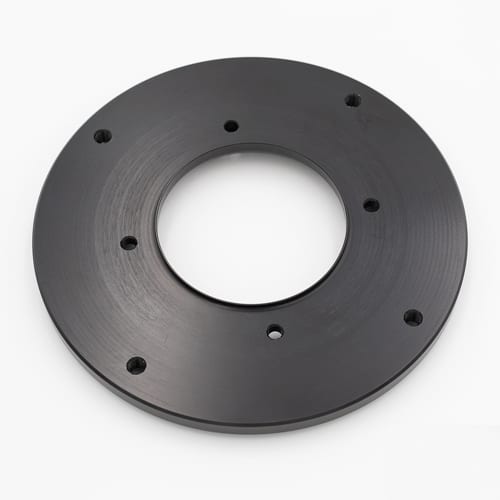

| Secure Fit Spacer for CDK12.5 |
- The SecureFit spacers are attached via four screws to the PlaneWave CDK12.5 Hedrick focuser.
- There are three lengths available 4.8″, 3.5″ and 2.5″.
| $250.00 | |
