170399 2.jpg
170399 3.jpg

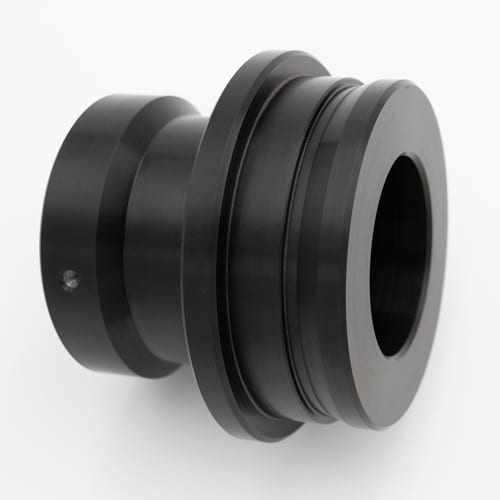

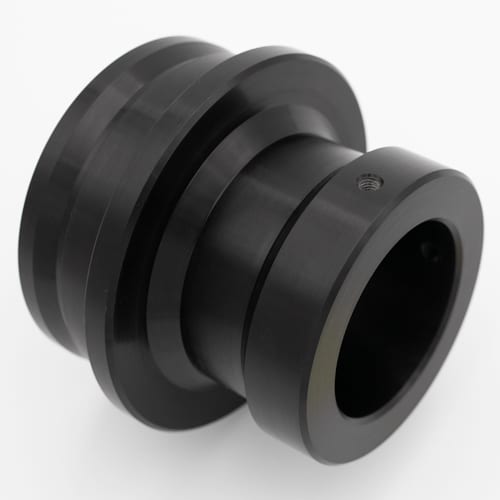

Visual Adapter – CDK17

SKU: 170399 Categories: , Tag:

$160.00

>This Visual Adapter for the CDK 17 allows you to attach standard 2″ visual accessories to the Hedrick Focuser.

  • The adapter steps the 3″ opening down to 2″ for standard 2″ accessories.
  • The adapter also adds some additional spacing to optimize the use of a 2″ diagonal so focus is reached with most eyepieces.
