IRDK12.5 (Infrared Optimized) Optical Tube Assembly

SKU: 125120Q Categories: , ,

$14,000.00

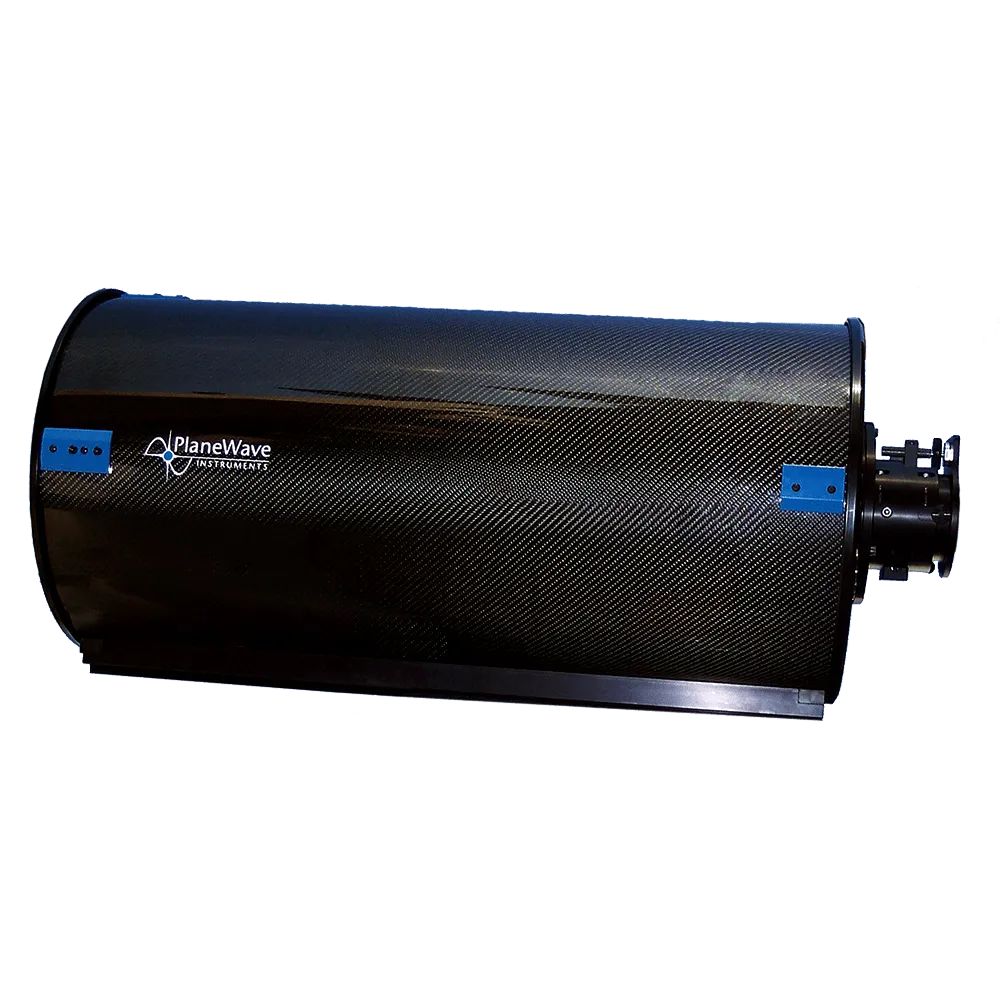

IRDK12.5 Optical Tube Assembly

The IRDK12.5 from PlaneWave Instruments is a precision-engineered optical system specifically designed for optimal performance in infrared wavelengths. It is an exceptional tool for advanced astronomical research and environmental monitoring, offering superior capabilities in infrared imaging.

*Price excludes shipping and crating. See our crating and pricing policy for full details.

Key Features Overview

The IRDK12.5 comes with features carefully crafted for infrared optimization:

  • Gold-coated mirrors optimized for high reflectivity in infrared wavelengths (ultraviolet optimization available)
  • 12.5-inch (318 mm) aperture
  • 2541 mm focal length
  • f/8 focal ratio
  • 265 mm back focus from mounting surface
  • 52mm image circle
  • Durable fused silica mirrors with minimal thermal expansion
  • Sturdy and lightweight carbon fiber optical tube assembly
About the IRDK12.5 (Infrared Optimized) Optical Tube Assembly

IRDK12.5’s Key Features

Large Aperture and Optimized Focal Ratio

The IRDK12.5 features a significant 318 mm aperture and an f/8 focal ratio, enhancing its efficiency in capturing infrared light. This setup is perfect for detailed infrared observations and extensive exposure imaging, offering outstanding light-gathering capacity.

Specialized Optical Design for Infrared

The Dall-Kirkham optical design of the IRDK12.5 is tailored for infrared wavelengths. It incorporates only reflective fused silica mirrors and no refractive lenses. The reflective coatings are protected gold, ensuring more than 98% reflectivity from 0.65 microns (650nm) to 5 microns (5000nm), making it ideal for infrared astronomy and environmental LIDAR applications. UV-optimized coatings are also available upon request.

Robust Mechanical Structure

Constructed using carbon fiber, the optical tube of the IRDK12.5 ensures durability and stability with minimal thermal expansion. This design maintains consistent performance under varying environmental conditions, suitable for rigorous scientific applications.

Advanced Thermal Management

Equipped with cooling fans and a system ready for Delta-T applications, the IRDK12.5 promotes rapid thermal equilibrium. This feature is critical for minimizing air turbulence inside the tube, thereby reducing potential image distortion and enhancing the quality of imaging.

Integrated Dew Control

The IRDK12.5 is designed to combat condensation, a common challenge in infrared observations. Advanced dew prevention technology, including heater pads controlled via PlaneWave’s software, keeps the optical surfaces clear of dew, ensuring consistent and clear imaging performance.

Application-Specific Benefits

Infrared Astronomy

The IRDK12.5 excels in infrared astronomy, where its large aperture and infrared-optimized optics allow for detailed observation of celestial objects in infrared light. This capability is essential for studying astrophysical phenomena not visible in standard optical wavelengths.

Advanced Research and LIDAR Applications

With its specialized design and infrared optimization, the IRDK14 is a robust platform for advanced scientific research, including LIDAR and other remote sensing applications.

Specifications

IRDK12.5 (Infrared Optimized) Optical Tube Assembly

OPTICAL SYSTEMS
SECONDARY MIRROR
PRIMARY MIRROR
included items
Aperture 318 mm (12.5")
Focal Length 2541mm (100")
Focal Ratio f/8
Central Obstruction 42% of the primary mirror diameter
Back Focus from Mounting Surface 10.4 in (265 mm)
Back Focus from Racked in Focuser 7.2 inch (183 mm)
Weight 42 lbs (19 kg)
OTA Length 31 in (787 mm)
Upper Cage Carbon fiber
Diameter 118 mm (4.65")
Material Fused Silica (quartz)
Shape Spherical
Coating Protected Gold
Optical Diameter 318 mm (12.5")
Outer Diameter 330 mm (13")
Shape Prolate Ellipsoid
Material Fused Silica (quartz)
Coating Protected Gold
Included Items Heating Elements for Dew Prevention - The heating pads on the primary and secondary mirror require the 600195 Delta-T controller sold separately
OTA Cover - To protect the primary mirror and inside of the optical tube
Flash drive - Contains software and instructions for collimation and spacing the primary to secondary mirror
Wrench Set (5812A35) - Standard hex wrenches (European orders only)
Cable connector for fan power - Provides a connection method for powering for the fans if the user does not have the 125901 EFA kit. User must provide 12VDC power supply 2.1 barrel jack connector that is center positive. (Not included for European orders)

Recommended Products

ImageNameSummaryPriceBuy

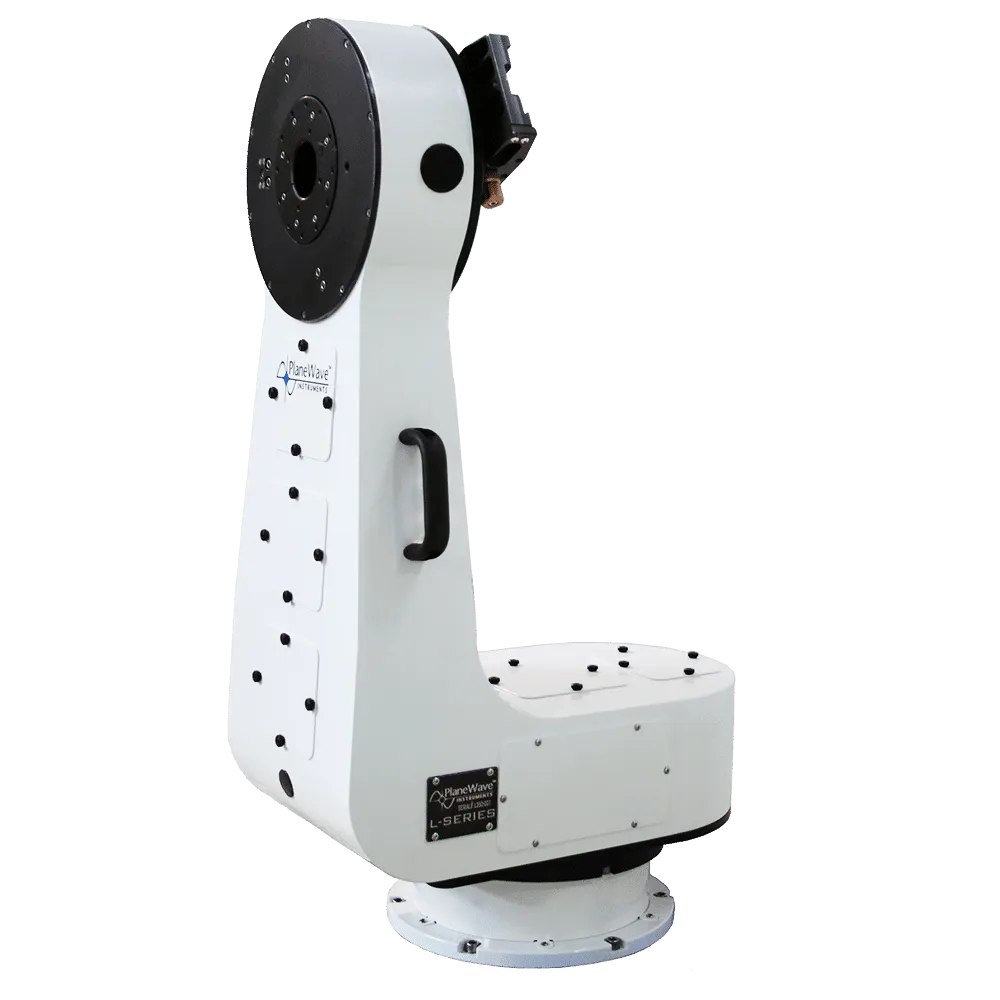

L-350 Direct Drive Telescope Mount

L-350 Direct Drive Telescope Mount

The PlaneWave L-350 Direct Drive Mount represents a pinnacle of engineering excellence, designed to meet astrophotography enthusiasts’ and astronomy researchers’ demands. This mount, a key component in our L-Series, integrates advanced technology to provide an unparalleled observational platform.

*Price excludes shipping and crating. See our crating and pricing policy for full details.

Key Features Overview

The L-350 stands out with its notable specifications and features:

  • 100 lbs load capacity
  • Direct drive motors for zero backlash, zero periodic error, and fast 50-degree-per-second slew speeds
  • High-resolution encoders for precise positioning
  • Enclosed electronics
  • Though the mount cabling
  • Alt/Az or equatorial installation orientations
  • Ideal for the DeltaRho 350, CDK12.5, CDK14, IRDK12.5, and IRDK14 optical tube assemblies
$14,000.00
Portable Rolling Pier

Don’t let bad weather stop you from enjoying your L-Series Mount every clear night. The Portable Rolling Pier lets you move your L-series Mount and telescope to the best spot for stargazing in no time. Just grab the steering T-handle and roll it wherever you want! With the auto-mount modeling feature in our PWI software, your L-Mount will be ready to capture amazing night sky images in minutes.

$8,700.00

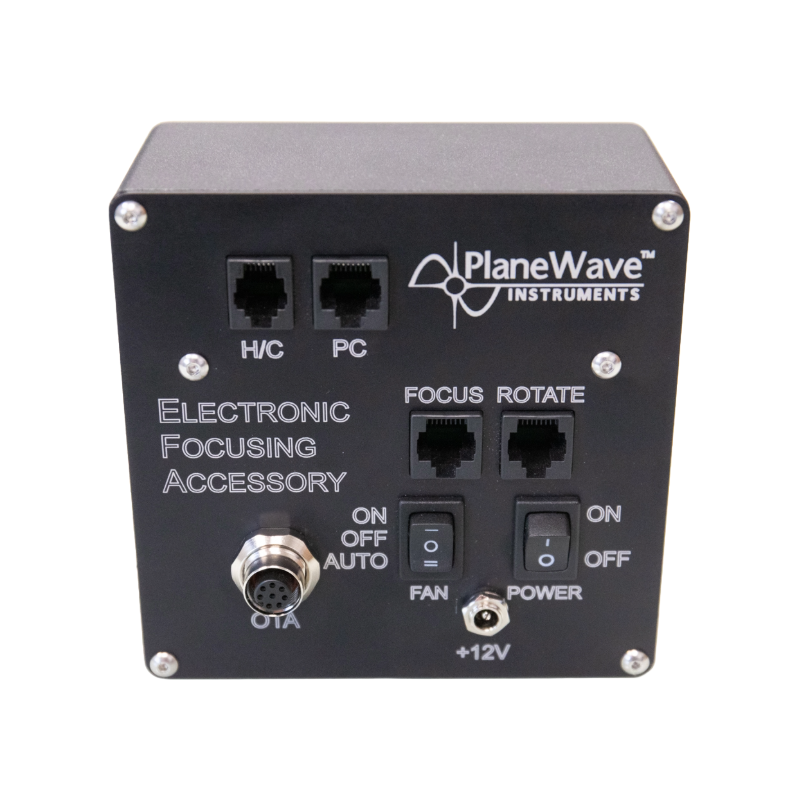

Electronic Focus Accessory (EFA) Kit
  • The EFA kit automates focusing on the optional Hedrick Focuser, or IRF90 rotating focuser.
  • Monitors temperature (primary-mirror and OTA back-plate).
  • Controls the fans built-in to CDK telescopes.
  • Ensure you have the proper EFA kit selected for your telescope below.
    • 125901-Kit is for CDK12.5 OTAs.
    • 240901-Kit is for CDK14, CDK17, CDK20, and CDK24 OTAs.
$920.00$1,150.00
Delta T Heater
  • The Delta T controller is an optional accessory for dew prevention on CDK14 through CDK24 OTAs and the CDK700 system.
  • CDK12.5 to CDK24 and CDK700 telescopes come with primary and secondary mirror dew heating pads (CDK700 adds tertiary mirror heating), which are ready to accept the Delta T controller.
  • Controlled via PWI3 software for CDK12.5 through CDK24 OTAs (PWI2 for the CDK700).
$750.00
Telescope Dovetail Saddles

The Keller EZ Saddle (600182) accepts Losmandy D-style dovetail rails such as the CDK12.5, CDK14, and DeltaRho 350. This saddle comes standard with the L-350 mount and can also be attached to the outside arm of any L-series mount for dual-mounted OTA configurations.

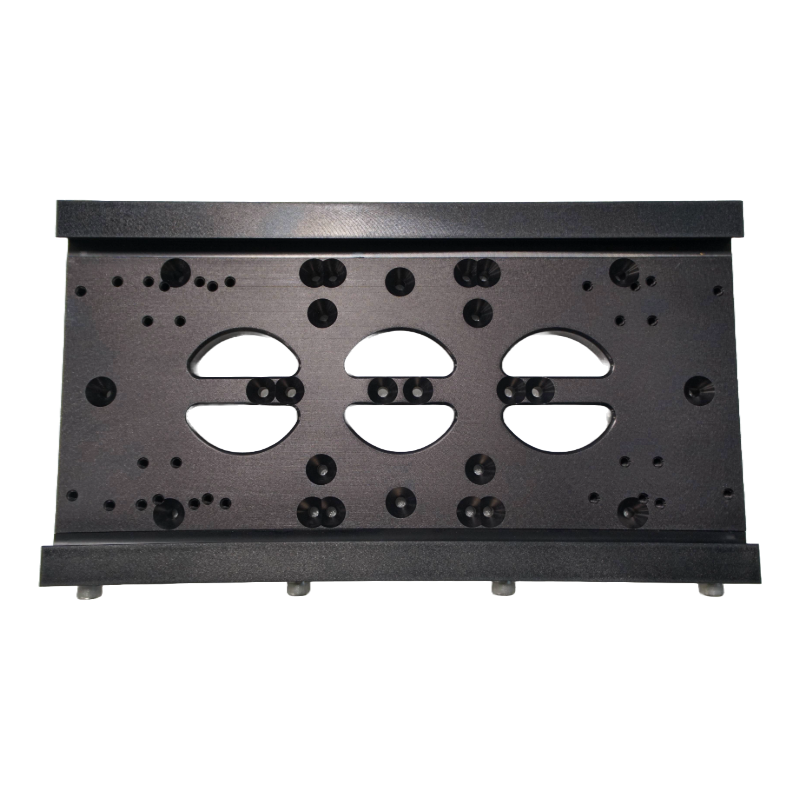

The PlaneWave Wide Saddle (200919) comes standard with L-500, L-550, and L-600 mounts for securing CDK17, CDK 20, CDK24, and DeltaRho 500 telescopes.

$400.00
Piggyback Dovetail Bars
  • Piggyback dovetails for mounting accessories atop an optical tube. These dovetails accept Losmandy D-style accessories.
  • Piggyback Dovetail Assemblies come with mounting brackets and a Losmandy style dovetail for mounting accessories on your CDK14, 17, 20, 24, and 700.

Please Note- For CDK17 users:

  • 170990 – is for the current CDK17 design with 10.24” of backfocus
$400.00$650.00

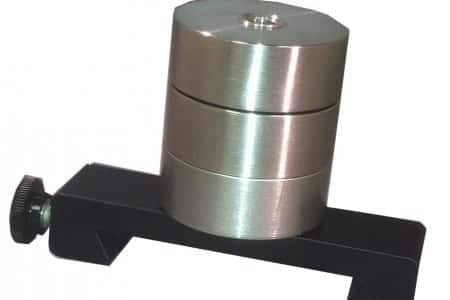

Counterweight Accessory for CDK12.5

Counterweight kit for CDK12.5 attaches to the dovetail bar for critical balance in Declination.

$290.00
L-350 Equatorial Wedge

Add to the versatility of your L-350 direct drive mount with PlaneWave’s L-350 equatorial Wedge for precise polar alignment and tracking accuracy.  Each wedge is made for your specific latitude and has an alignment range of ±3 degrees.  Uses oversized fine thread adjustment screws and brass tightening nuts for a fine latitude adjustment.

$2,000.00

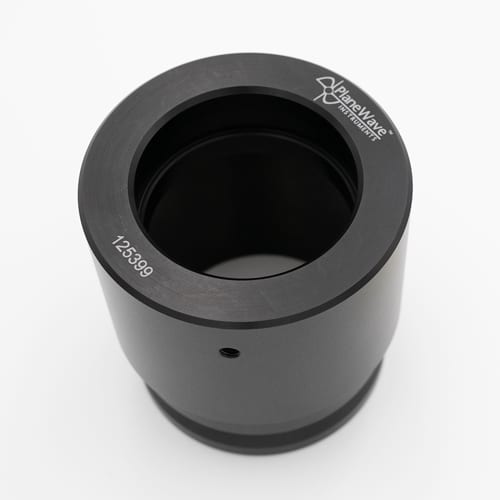

Visual Adapter – CDK12.5

This 2.75-2″ visual adapter slides into the Hedrick Focuser that comes standard on the CDK12.5.

  • The adapter steps the 2.75″ opening down to 2″ for standard 2″ accessories.
  • The adapter also adds some additional spacing to optimize the use of a 2″ diagonal so focus is reached with most eyepieces.
$160.00
Finderscope and Mounting Bracket

The back plate on all of the CDK models has four mounting positions for a finder mounting plate.

  • The finder mounting plate attaches to the back plate of the telescope and the quick-release finder bracket attaches to the mounting plate.
  • If the telescope is used on a German Equatorial mount it may be convenient to purchase two finder scopes, one for the east and one for the west side of the telescope.
  • The finder scope is a Baader 10×60 Varios with mounting rings and L- bracket.
$460.00
2 inch Mirror Diagonal
  • The Tele Vue Everbrite has a Pyrex mirror with 1/10th wave accuracy
  • Dielectric, non-metallic coatings have 99% reflectivity across the visible spectrum
  • Resulting images through this diagonal are brighter and “whiter”
  • The Everbrite’s body is machined from one solid block of aluminum for permanent alignment
  • 2″ filter anti-reflection threads in the diagonal let you attach filters to the diagonal instead of moving from eyepiece to eyepiece
  • Brass clamp ring holds 2″ eyepieces and accessories firmly in place without marring the barrels
  • Included 2″ to 1.25″ HiHat Adapter is of same high quality in make and materials
$394.00
Mounting Bracket for Finderscopes
  • This is an L-shaped bracket that attaches in four different places on the back of any of the CDK models.
  • This is used to mount a finderscope or some other accessory.
  • Two 1/4-20 screws provided attach the bracket to the backplate of the telescope and two 10-32 threaded holes spaced at 1.450″ can be used to mount accessories too.
$50.00

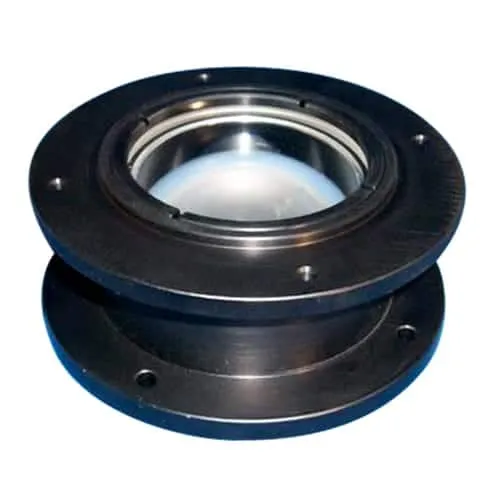

Reducer 0.66x CDK12.5/14/17This is a reducer designed specifically for flat field telescopes like the CDK. This reduces …$1,400.00
